June 16, 2025
In today’s high-performance electronics landscape, crystal oscillators play a pivotal role in ensuring system stability, timing accuracy, and signal integrity. For hardware engineers and procurement specialists, choosing the right oscillator involves balancing performance, cost, and environmental requirements.
At JGHC Crystal, we’ve supported thousands of projects across multiple industries. In this article, we break down the four most widely used oscillator types—XO, TCXO, VCXO, and Differential Oscillators—highlighting their features and application-specific recommendations.

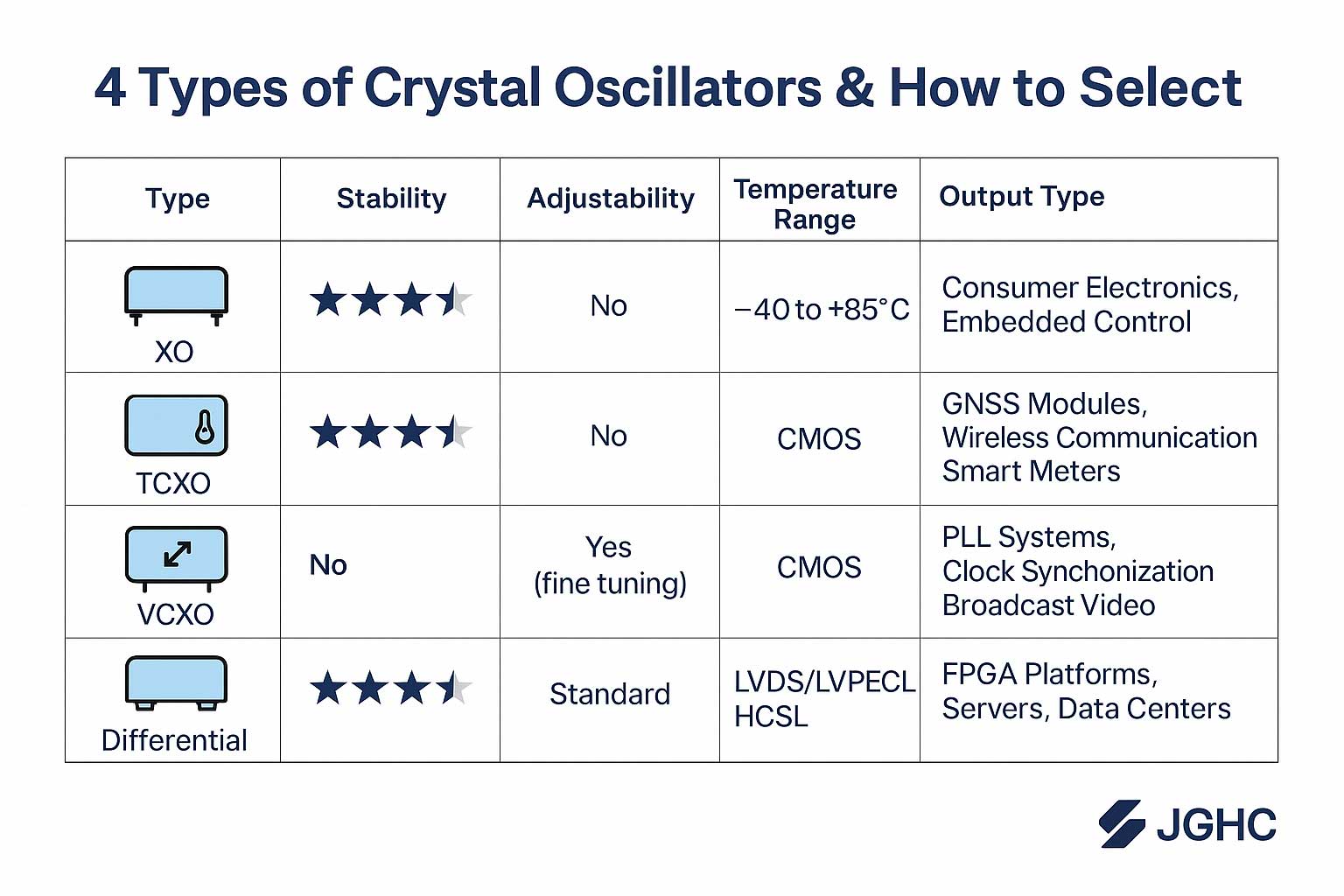

1.Overview of Common Crystal Oscillator Types
XO (Standard Crystal Oscillator)
Features: Simple architecture, cost-effective, suitable for general timing needs
Frequency Stability: ±20~100 ppm
Package Options: 2016, 2520, 3225, 5032, etc.
Typical Applications: Routers, digital devices, consumer electronic
2.TCXO (Temperature Compensated Crystal Oscillator)
Features: Built-in temperature compensation circuit, maintains stable output across varying temperatures
Frequency Stability: ±0.5~2.5 ppm
Temperature Range: -40°C to +85°C or wider industrial-grade options
Typical Applications: GPS modules, LTE/5G transceivers, smart meters, IoT positioning devices
3. VCXO (Voltage Controlled Crystal Oscillator)
Features: Frequency can be finely tuned via control voltage, ideal for synchronization systems
Pull Range: ±50~±100 ppm (typical)
Voltage Options: 1.8V, 2.5V, 3.3V
Typical Applications: Video broadcasting, network synchronization, clock recovery circuits
4. Differential Oscillators
Features: Differential signal output (LVDS, LVPECL, or HCSL), low jitter and EMI for high-speed digital systems
Frequency Stability: ±25~50 ppm or better
Output Types: LVDS / LVPECL / HCSL
Typical Applications: Server motherboards, data centers, SerDes systems, FPGA platforms
2. Why Choose JGHC Crystal?
As a trusted frequency component manufacturer, JGHC Crystal offers a complete lineup of oscillators and tailored support for global OEMs and design teams:
Complete Product Range: XO, TCXO, VCXO, Differential Oscillators in all common packages
Customizable Options: Support for specific frequency, voltage, and stability requirements
Fully Certified: Products meet RoHS, REACH, AEC-Q200, and industry quality standards
Expert Technical Support: Get assistance with component selection, samples, and mass production integration
3. Request Samples & Expert Advice Today
Email : ivy@jghcrystal.com
WhatsApp:+8615989546472
