The AO2 series are car-grade high-frequency crystal oscillators and widely are used in electronic equipment and electronic devicessuch as microcontrollers, digital cameras, smart watches, Wi-Fi modules, etc. Due to its high frequency and high stability, it plays an important role in high-speed data transmission, accurate dateTime recording and demanding electronic applications.
AO2 Series SMD Automatic Grade Crystal Oscillator 2.5X2.0mm
As one type of crystal quartz oscillator , the AO2 can generate a stable frequency and has many uses. Its specific application depends on the needs and design of the equipment. For example, it is used in mobile phones, computers, servers, industrial automation systems, microwave ovens, televisions, etc.
The AO2 has many advantages as smd crystal oscillator, including high precision, low noise, and small size, which make it an ideal component for modern electronic device.
The output frequency range for AO2 series is from 1MHZ to 170MHZ. With compact design and low power consumption, the AO2 is suitable for battery-powered devices and portable applications.
Product features:
✦Ultra small SMD seam sealed clock crystal oscillator units.
✦High precision characteristic covering up to high frequency range.
✦Designed for automatic mounting and reflow soldering.
✦Tri-State function available.
✦Supply voltage range : 1.8 V~3.3 V.
✦High stability, low jitter , low power consumption.
✦RoHS Compliant / Pb Free.
Crystals specifications:
| ITEMS/TYPE | AO2 |
| Frequency Range | 1-170MHZ |
| Output Type | CMOS |
| Output Load | 15PF or specify |
| Oscillation Mode | Fundamental |
| Supply Voltage | 1.8V~3.3V, or specify |
| Frequency Stability | ±20 ppm, or specify |
| Operating Temperature Range | -40~+ 125 ℃, or specify |
| Storage Temperature Range | -55~+125 ℃ |
| Voltage Vol ( Max. )/Voltage Voh ( Min.） | VOH=90%Vdd/VOL+10%Vdd |
| Rise ( Tr )/ Fall ( Tf) Time | 8 ns Max. |
| Current Consumption | 10 mA Max. |
| Symmetry | 45~55 % |
| Start-up Time | 5 ms Max. |
| Phase Jitter(12KHZ∼20MHZ) | 1ps Max |
| Aging(at 25 ℃) | ±3 ppm /year Max |
| Reliability Standard | AEC-Q100 |
| Packing Unit | 3000pcs/Reel |

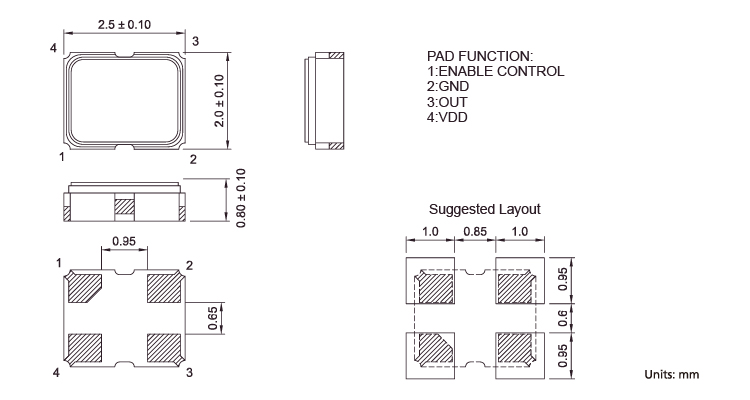

Dimensions and patterns(unit:mm):
Application:
Why Choose Us？
+ One-stop supply of all frequency control parts.
+ Dedicated FAE team provides PCB testing, load capacitance matching and any after-sales technical support.
+ 180 warranty and return policy.
+ All our factories are ISO certified and our components are RoHS and REACH compliant.
FAQ:
1. Are you a manufacturer?
We are a manufacturing company with over 20 years of experience in the field of crystals, oscillators and filters.
Our production capacity is 1 million pieces per month for each crystal series.
2. How long is your delivery time?
Lead times vary for different component series:
3. Do you provide samples?
We provide 10-20 free samples, no compromise.
4. Can you make uncommon and personalized frequency parts?
Yes, we make custom frequencies. Delivery time will be extended by 1-2 weeks.
5. What parameters do I need to provide to get a detailed quote?
The basic parameters we need to know are size, frequency, load capacitance, ppm and quantity. The oscillator also requires a supply voltage.
We can advise on other parameters if needed.
