The crystal resonator S21 series offer exceptional frequency stability and low phase noise, making them ideal for communication systems, precision timing applications, and embedded devices. Their compact design and wide frequency range enhance performance while minimizing power consumption, ensuring reliable operation in demanding environments. Perfect for enhancing system efficiency and reliability.
Small Size 2.0x1.6mm SMD 8pF 10 PPM Quartz Crystal Resonator
The size of the S21 series crystal oscillator is 2.0x1.6x0.5mm, which is suitable for use in compact electronic equipment, especially in smartphones and portable consumer electronics.
This series of crystal resonator has the characteristics of low power consumption, which can effectively extend the battery life of the device and meet the needs of modern consumer electronics products.
The quartz crystal resonator S21 provides high-precision frequency stability, ensuring reliable operation of the equipment in different working environments.
Product features:
✦Extremely small SMD type crystal units.
✦High precision and high frequency stability.
✦Excellent heat resistance and environmental characteristics.
✦Applications in PDA,DSC,DVC,PC, etc.
✦RoHS Compliant / Pb Free.
Crystals specifications:
| ITEMS/TYPE | S21 |
| Frequency Range | 16-54MHz,96MHZ |
| Load Capacitance | 8pF,9pF,12pF,or specify |
| Frequency Tolerance (at 25°℃) | ±10ppm ±20ppm, or specify |
| Frequency Stability Over Operating Temperature Range | ±10ppm ±20ppm, or specify |
| Operating Temperature Range | -40-+85℃, or specify |
| Shunt Capacitance (C0) | 3pF Max. |
| Drive Level | 1-200μW Max. (100μW typical) |
| Aging (at 25℃) | ± 3 ppm/year Max. |
| Storage Temperature Range | -40~+85℃ |
| Packing Unit | 3,000pcs/Reel |

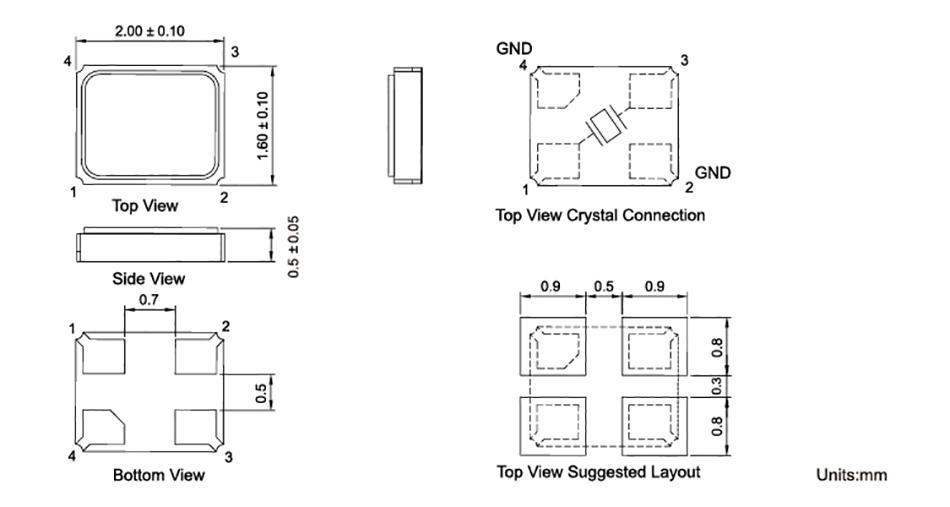

Dimensions and patterns(unit:mm):
Application:
Why Choose Us？
+ One-stop supply of all frequency control parts.
+ The dedicated FAE team offers frequency deviation, resistance, DLD tests, and other auxiliary project tests, along with comprehensive after-sales technical support.
+ 180 warranty and return policy.
+ All our factories are ISO certified and our components are RoHS and REACH compliant.
FAQ:
1.What is the package form of the S21?
2.What role does the S21 crystal resonator play in smartphones?
Many of the circuit modules in a smartphone require accurate clock signals to ensure normal operation, such as baseband processors, RF modules, etc. S21 crystal resonators provide stable clock references for these modules to ensure the synchronisation and accuracy of data transmission, signal processing, and other operations, thus realising the phone's various communication functions, such as calls, text messages, and internet access.
If you have any application requirements in this area, please contact our sales team to provide you with services.
3.What is the temperature stability of the S21?
4. What happens if there is a quality problem with the product?
If there is a quality problem with the product you received, please contact us at the first time and provide relevant evidence such as photos or videos. We will assess and deal with the situation according to the specific circumstances, and will usually take replenishment, replacement, repair or refund to solve the problem to ensure that your rights and interests are protected.
5. What parameters do I need to provide to get a detailed quote?
The basic parameters we need to know are size, frequency, load capacitance, ppm and quantity. The oscillator also requires a supply voltage.
We can advise on other parameters if needed.
The S16 series 1.6x1.2x0.35mm SMD quartz crystals are extremely small and have stable frequencies. They are suitable for portable devices such as PDAs and DSCs and have excellent heat resistance and environmental protection properties.
The crystal resonator S21 series offer exceptional frequency stability and low phase noise, making them ideal for communication systems, precision timing applications, and embedded devices. Their compact design and wide frequency range enhance performance while minimizing power consumption, ensuring reliable operation in demanding environments. Perfect for enhancing system efficiency and reliability.
The S22 series are passive quartz crystal resonator with high precision and high frequency stability. They are widely used in short-distance wireless communications such as Bluetooth and Wi-Fi.
The S32 Crystal Oscillator is engineered for high precision and reliability, making it suitable for a wide range of applications, including telecommunications, automotive, and consumer electronics.
The S53 series quartz crystal resonators are high-quality timekeeping components commonly used in electronics. They are a type of oscillating circuit that generates a precise frequency signal and the output frequency range is 8-54MHZ, which makes them often used to drive watch movements, real-time clocks, and other timing applications.
T16 series crystal resonators are high stability crystals with small size, fast start-up time, and built-in thermistor temperature compensation. With dimensions of only 1.6x1.2x0.65mm, the T16 series is ideal for use in space-critical electronic applications.
The T21 series of thermistor crystal resonators, measuring 2.0 x 1.6 x 0.8 mm and with a frequency range of 19.2-76.8 MHz, offers the advantage of a small footprint that makes it easy to integrate into a wide variety of electronic devices without adding to the overall weight of the device, a feature that makes it ideal for use in high-precision clocks.
Thermistor quartz crystal T22 series surface layer with quartz crystal and thermistor mounted, 2.5x2.0x1.0mm small size, lead-free soldering to meet the requirements of the reflow temperature curve, automatically sense and respond to changes in temperature in order to maintain the output frequency of the very high stability, often used in 5G base stations, industrial equipment, medical, consumer electronics and so on.
