T16 series crystal resonators are high stability crystals with small size, fast start-up time, and built-in thermistor temperature compensation. With dimensions of only 1.6x1.2x0.65mm, the T16 series is ideal for use in space-critical electronic applications.
Small Size Crystal Resonator T16 Series
The T16 series of crystal resonators, measuring only 1.6x1.2x0.65mm in size and with built-in thermistor temperature compensation for high stability, can offset temperature drift and maintain stable frequency output, providing a strong support for miniaturised electronic device designs.
T16 frequency range 26 - 76.8 MHz, frequency adjustable. It is also highly resistant to interference. The structure and physical properties of the quartz crystal resonator enable it to maintain stable oscillation during operation without being affected by the surrounding electromagnetic field.
T16 crystal resonators provide stable frequency signals directly in circuits, simplifying circuit design and layout and improving system reliability, and are widely used in mobile phones, Bluetooth devices, smart watches, medical devices, and other fields.
Product features:
✦High precision and high frequency stability.
✦Reduces temperature runaway due to oscillation frequency.
✦The best choice for Bluetooth, smartphones, and memory.
✦RoHS Compliant / Pb Free.
Crystals specifications:
| ITEMS/TYPE | T16 |
| Frequency Range | 26-76.8MHz |
| Load Capacitance | 12pF, or specify |
| Frequency Tolerance (at 25℃) | ±10 ppm, or specify |
| Frequency Stability Over Operating Temperature Range | ±10 ppm, or specify |
| Operating Temperature Range | -30~+85℃, or specify |
| Shunt Capacitance(C0) | 3 pF Max. |
| Drive Level | 1~ 100μW (typical ) |
| Aging (at 25℃) | ± 1 ppm / year Max. |
| Storage Temperature Range | -40~+105 ℃ |
| Thermistor Resistance(25℃) | 100 kΩ, or specify |
| Thermistor B-constant(25~50℃) | 4250, or specify |
Equivalent Series Resistance(ESR)
| Frequency Range | Mode | ESR. | Frequency Range | Mode | ESR. |
| 26~40MHz | FuAT,Fundl | 50 ΩMax. | 40~76.8MHz | FuAT,Fundl | 30 ΩMax |

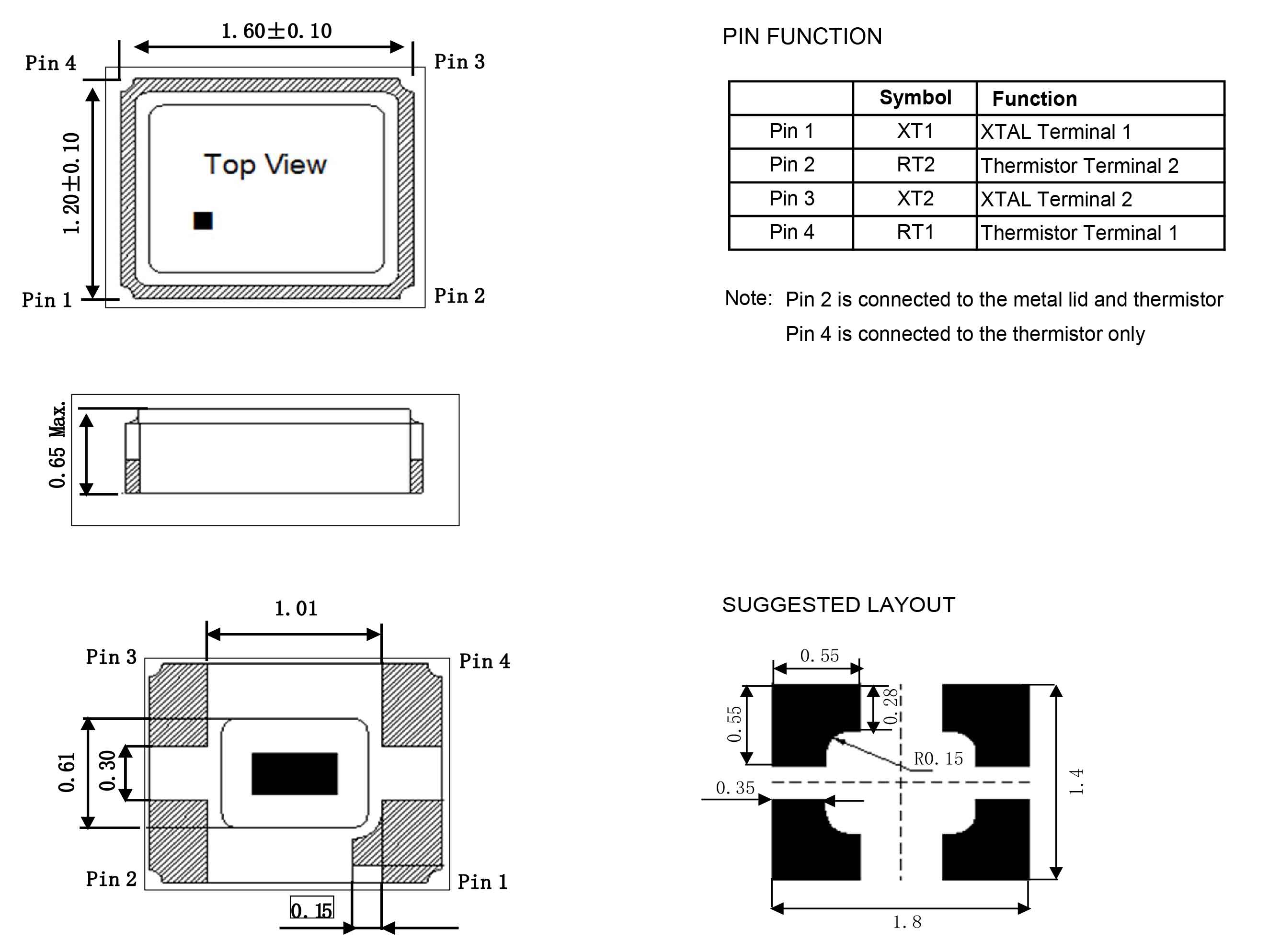

Dimensions and patterns(unit:mm)
Apllication:
Why Choose Us？
+ One-stop supply of all frequency control parts.
+The dedicated FAE team offers frequency deviation, resistance, DLD tests, and other auxiliary project tests, along with comprehensive after-sales technical support.
+ 180 warranty and return policy.
+ All our factories are ISO certified and our components are RoHS and REACH compliant.
FAQ:
1. Do you test your products before they are delivered?
We will have professional engineers to test all products before delivery to ensure that each product is qualified for delivery.
2.What are the common frequencies of the T16 series?
T16 commonly used frequencies are 26MHz, 38.4MHz, 52MHz, 76.8MHz, etc. We also customise frequencies for customers. For more information, please contact our sales team.
3. Are there any features of this product?
The thermistor in the T16 crystal resonator cancels out the temperature drift of the oscillation frequency and maintains a stable frequency output. The low power consumption is ideal for some portable or battery-powered devices that have stringent requirements on power consumption.
4.Do we get technical support after purchase?
Of course, we have a professional technical team is ready to assist you to solve any problems or questions, such as the need to buy can always contact the sales team.
5.Can you handle the logistics of shipping your products?
Yes, we co-ordinate with reliable logistics partners to ensure that our products arrive on time and safely.
